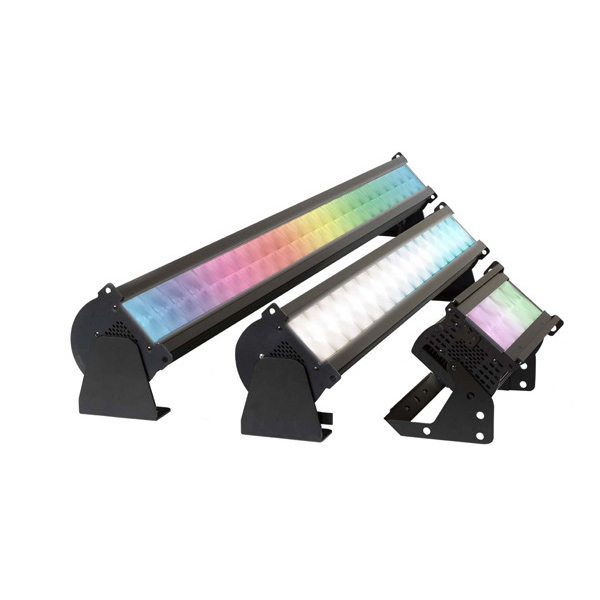

Chroma-Q Studio Force II Range

The Natural Choice for Studio Lighting

Using a homogenized LED source capable of delivering variable color temperature, plus/minus green shift control and the ability to produce deep saturated colors when needed, the Studio Force II is specifically designed for TV Broadcast and film applications but also performs particularly well in other situations demanding high quality tuneable white light such as touring key lights, exhibitions, corporate events and theatre lighting.

The Studio Force II uses the same ColorSure™ technologies found in other innovative Chroma-Q fixtures to deliver consistent color across fixtures.

Patents pending

Key Features:

• Full spectrum variable white light engine
• High intensity homogenized output
• Extremely smooth uniform wash
• Variable plus / minus green shift
• Ideal for TV, Broadcast and Film
• PowerCON TRUE1 input and output for easy daisy chaining of fixtures

Plus / Minus Green Shift

Tuneable white LED fixtures produce light typically ranging from cool white (~6,500K CCT) through to warm white (~2,800K CCT) by following the black body locus.

Chroma-Q’s plus / minus green shift control allows designers to vary hue by moving along the green–magenta axis orthogonal to the color temperature axis in accurately defined increments. This gives exceptional ability to control atmosphere and ambience on screen.

Chroma-Q® ColorSure™

The inherent variation between individual LED emitters means color can vary from fixture to fixture. Chroma-Q’s ColorSure is a proprietary system to ensure fixtures within the same product range provide consistent output regardless of when they are manufactured.

A complex range of processes for selecting (binning) individual LED emitters; calibrating LED light engines in-house to a uniform standard and sophisticated firmware and software ensures exceptional fixture to fixture consistency.

Features

Studio Force II has a colored touch display for easy navigation through the addressing, modes and settings. Power and DMX / RDM data through connections, optional wireless LumenRadio CRMX connection. Tool-less tilt adjustment allowing side-by-side fixture placement without any gap.

Accessories

Chroma-Q offers a range of optional accessories for Studio Force II to tailor for any lighting situations. Accessories simply slide through the mounting slots. Cyc / border lenses can be used with other accessories.

Studio Force II – 12 Studio Force II – 48 Studio Force II – 72
Product codes CHSF2V12 – Black
CHSF2V12W – White
CHSF2V12LR – Black with LumenRadio
CHSF2V48 – Black
CHSF2V48W – White
CHSF2V48LR – Black with LumenRadio
CHSF2V72 – Black
CHSF2V72W – White
CHSF2V72LR – Black with LumenRadio
CCT Adjustable 2800 – 6500K Adjustable 2800 – 6500K Adjustable 2800 – 6500K
CRI Up to 94 Up to 94 Up to 94
Mired Shift (+/- green) +2/-2 Green (KHi mode) +2/-2 Green (KHi mode) +2/-2 Green (KHi mode)
Beam Angle 22º (approx) 22º (approx) 22º (approx)
Beam Angle with optional Cyc Optic 80º x 35º (approx) 80º x 35º (approx) 80º x 35º (approx)
Beam Angle with optional Border Cyc 43º (approx) 43º (approx) 43º (approx)
Hot Lumen Output 6,500 lm 24,000 lm 36,000 lm
Dimming Ultra Smooth Dimming Ultra Smooth Dimming Ultra Smooth Dimming
Control Protocol DMX DMX DMX
IP Rating IP20 IP20 IP20
Net Dimensions
(LxHxD)
335mm x 190mm x 218mm
13.2″ x 7.5″ x 8.6″
1181mm x 191mm x 165mm
46.5″ x 7.5″ x 6.5″
1759mm x 191mm x 165mm
69.25″ x 7.5″ x 6.5″
Weight 5.0kg / 11.0lbs 18.0kg / 40lbs 24kg / 53lbs
Power Consumption (Max) 150W 550W 800W
Connections (Power) Neutrik powerCON TRUE 1 Neutrik powerCON TRUE 1 Neutrik powerCON TRUE 1
Connections (Data) Neutrik XLR 5 – pin Neutrik XLR 5 – pin Neutrik XLR 5 – pin
LED Life L70 at 50,000 hours L70 at 50,000 hours L70 at 50,000 hours
