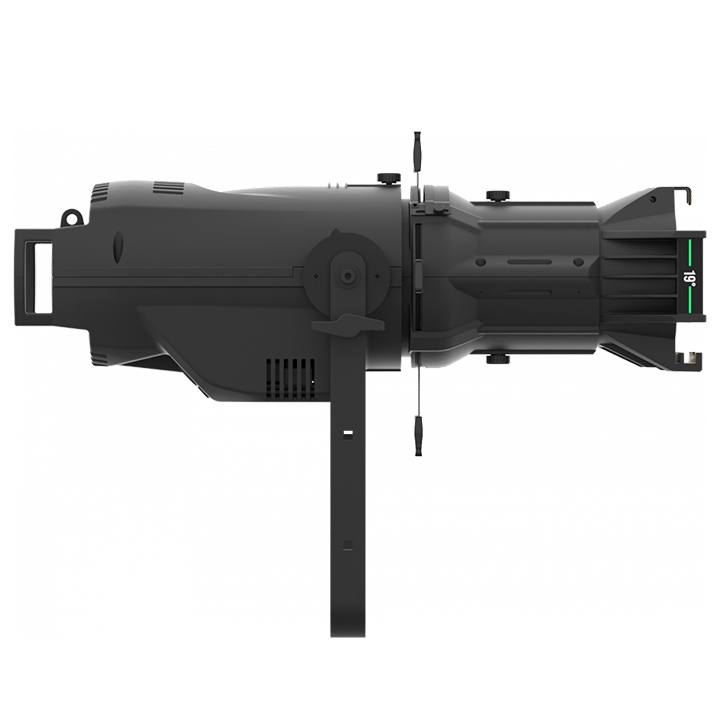

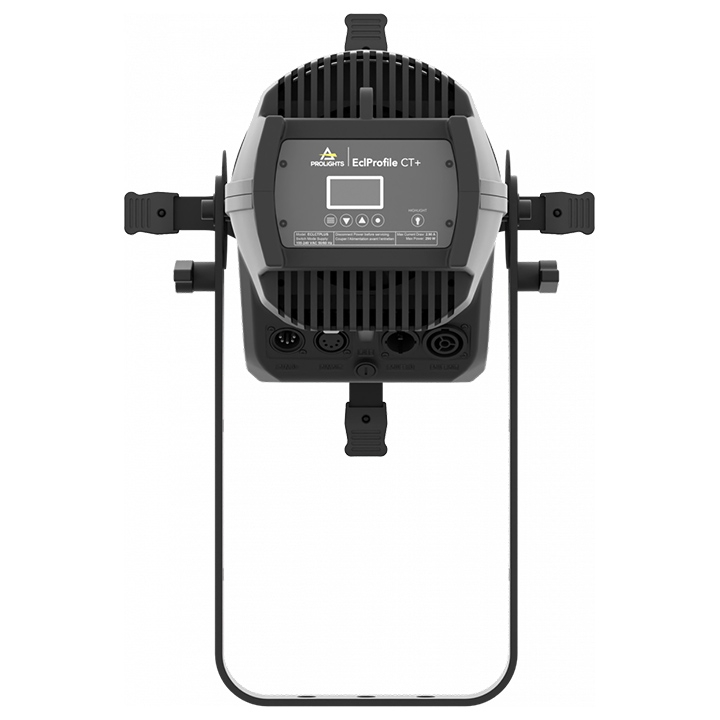

EclProfile CT+

MSRP: $1,849.00 USD
PIECLCTPLUSBK

High-quality six colours LED ellipsoidal, tunable white, and colour mixing.

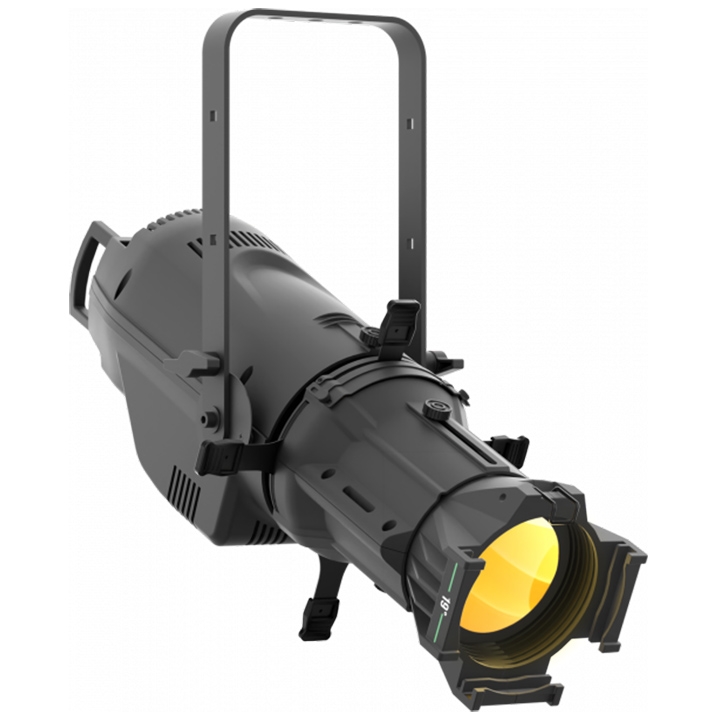

EclProfile CT+ is a high quality, six colour mixing LED ellipsoidal. Designed to reach the finest quality of light for white tones and colour spectrum, its custom LED array and powerful onboard colour control allow to reach bright and high-quality whites, up to 97 of CRI, keeping a consistent output and ensuring total control of the light. The wide feature set includes special theatrical functions such as tungsten emulation on dimming, colour gels, virtual CTO, and studio functions, such as +/- green correction on linear white CCT.

Would you like a Demo?

Main features:

  • Linear white CCT from 2,800 K to 10,000 K with CRI up to 97.

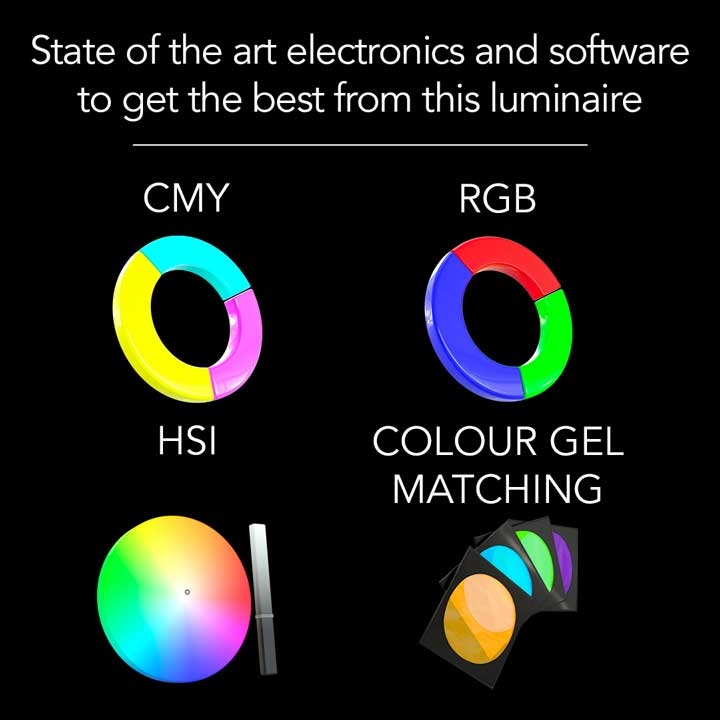

  • RGB / CMY / HSI 3 ch colours control of the six colours LED array for easy access to any desired colour.
  • Industry-standard colour gels matching, tungsten emulation on dimming, tint control (+/- green)

Spektra

LIGHT SOURCE

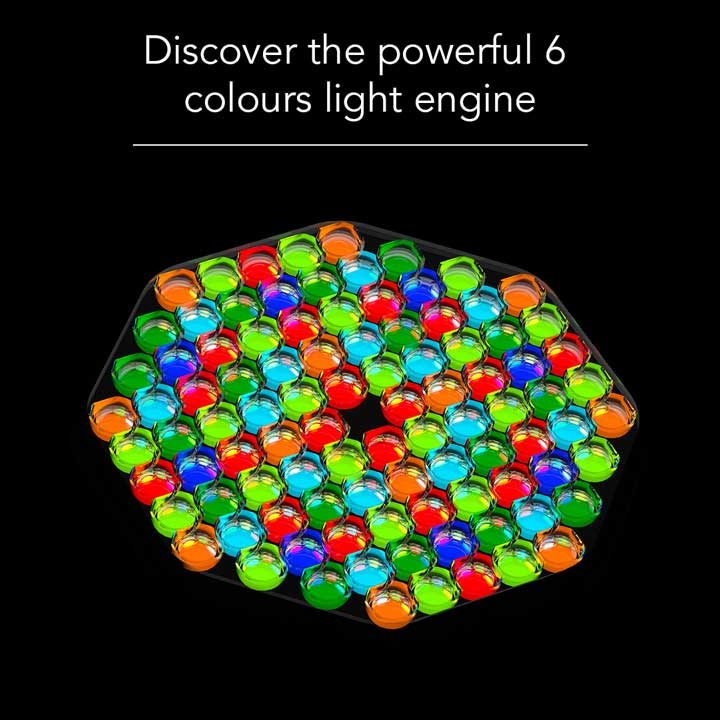

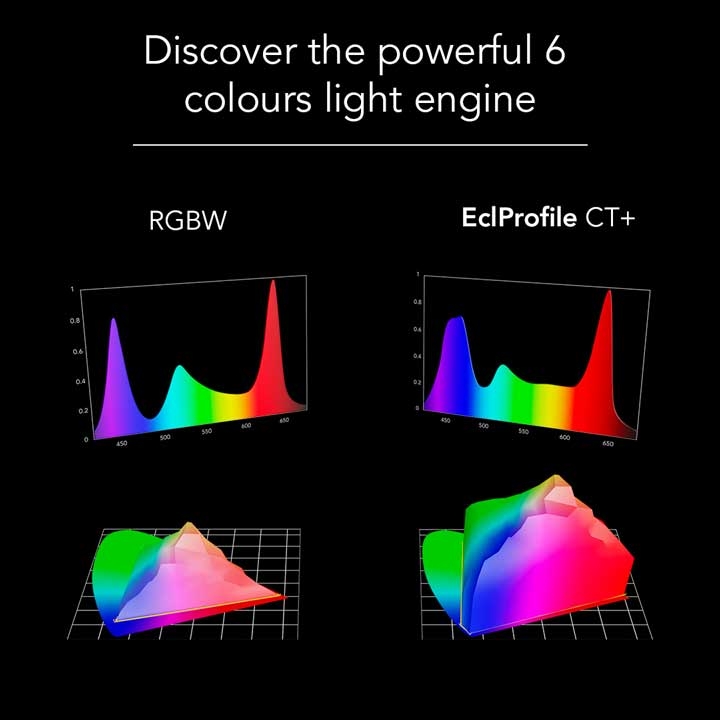

  • Source: Luxeon-C; 96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
  • CCT: @full 5,000K
  • Luminous flux: (5°) 3,805 lm; (10°) 4,790 lm; (14°) 5,047 lm; (19°) 5,380 lm; (26°) 6,681 lm; (36°) 6,814 lm; (50°) 5,773 lm; (70°) 7,430lm @full
  • Luminous flux: (zoom 15°-30°) (min angle) 5,290 lm; (max angle) 6,664 lm - (zoom 25°-50°) (min angle) 7,042 lm; (max angle) 9,817 @full
  • Lux: (5°) 14,638 lx; (10°) 8,663 lx; (14°) 3,812 lx; (19°) 2,530 lx; (26°) 1,759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306lx @5 m full
  • Lux: (zoom 15°-30°) (min angle) 3,502 lx; (max angle) 1,800 lx - (zoom 25°-50°) (min angle) 2,608 lx; (max angle) 974lx @5 m full
  • CRI: 93,7 @3,200 K; 97,6 @5.600 K
  • R9: 98,6 @3,200 K; 98,2 @5.600 K
  • TLCI: 95 @5,600 K
  • TM30 Rf: 92 @5,600 K
  • TM30 Rg: 100,1 @5,600 K
  • Source life expectancy: > 50,000 h

OPTICS

  • Lens type: high-quality glass lens optics

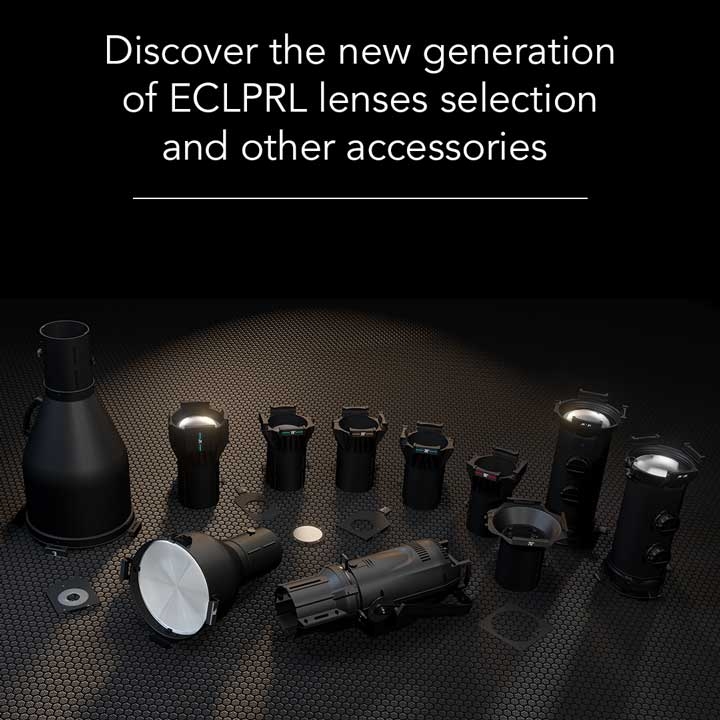

  • Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50°
  • Focus: manual
  • Other: see available accessories

COLOUR SYSTEM

  • Colour mixing: RGB, Royal Blue, Mint, PC Amber
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2,700 K ~ 10,000K
  • Colour wheel: colour gels matching and RGB / HSI / CMY selectable colour mode

DYNAMIC EFFECTS

  • Gobo size: B, outer: 86 mm - image: 64.5 mm - thickness: 1.1 mm
  • Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: RAL 9004

CONTROL

  • Protocols: DMX512, RDM
  • Stand Alone: selection of static colours, white presets, manual colours and built-in effects with adjustable speed
  • DMX channels: UNO / DUO / Basic / Standard / Extended / RAW Direct / RAW 16bit / XYchannel
  • RDM: RDM for remote monitoring and settings

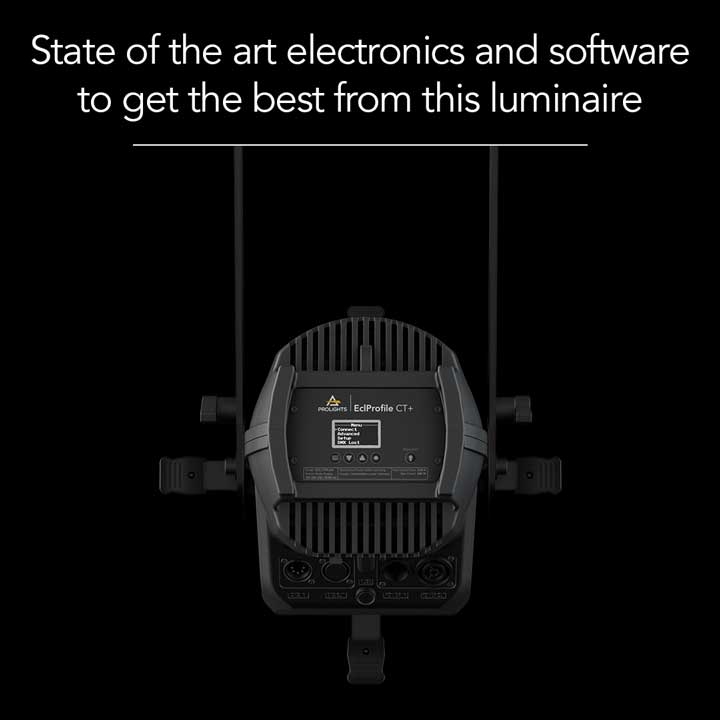

  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included (through dedicated software)
  • Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Operating temperature: -20° ~ +45°
  • LED Control: flicker-free operation
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 264W
  • Output (at 230V): 7 units on a single power line
  • Power factor: > 0,95

PHYSICAL

  • IP rating: 20
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 264x259x539mm / 10.39''x10.2''x21.22''
  • Weight: 7.9kg / 17.42lbs

BOX CONTENT

  • 1 x ECLCTPLUS
  • 1 x 1.5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)

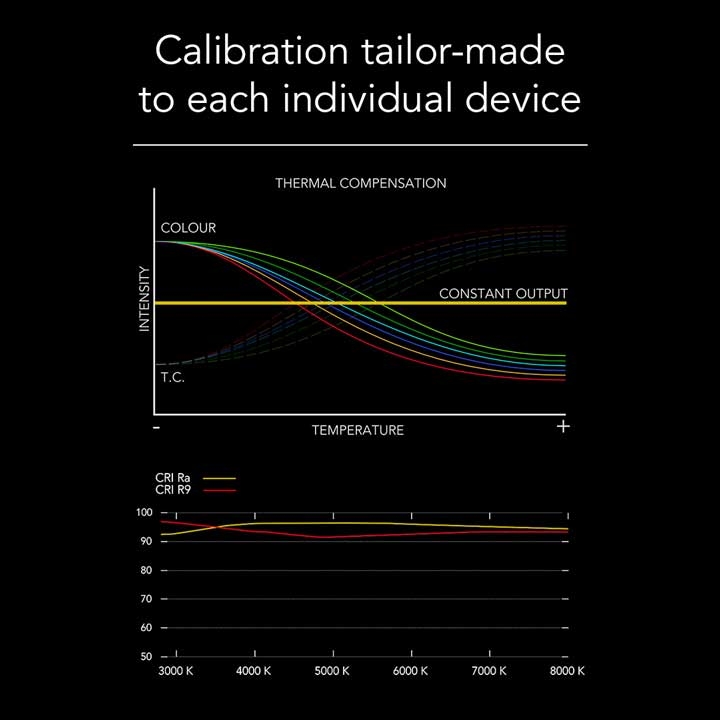

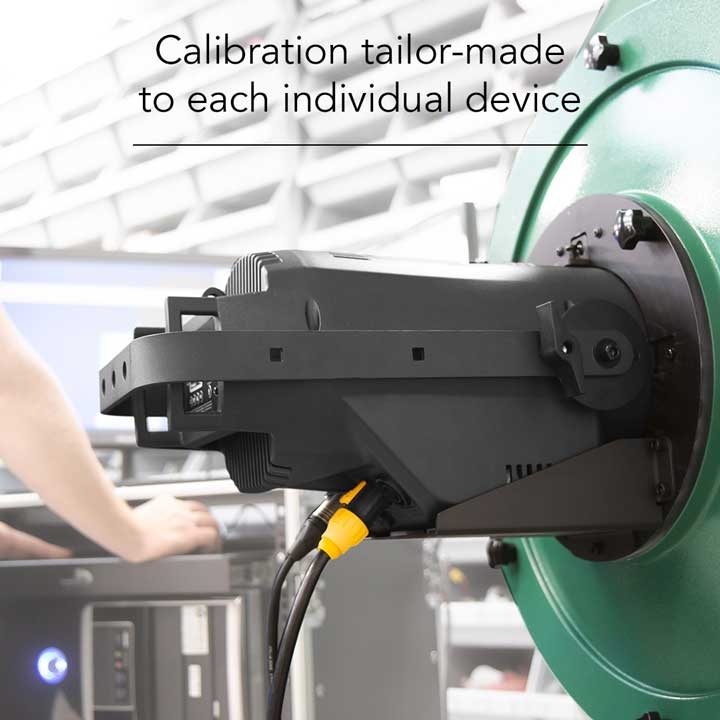

  • 1 x Calibration Report
  • User Manual

To learn more about Photometrics, Software & Certificates, click here.

*Note: PROLIGHTS reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details. www.prolightsamerica.com.
