Chroma-Q Color Force II Range

Game Changed Again

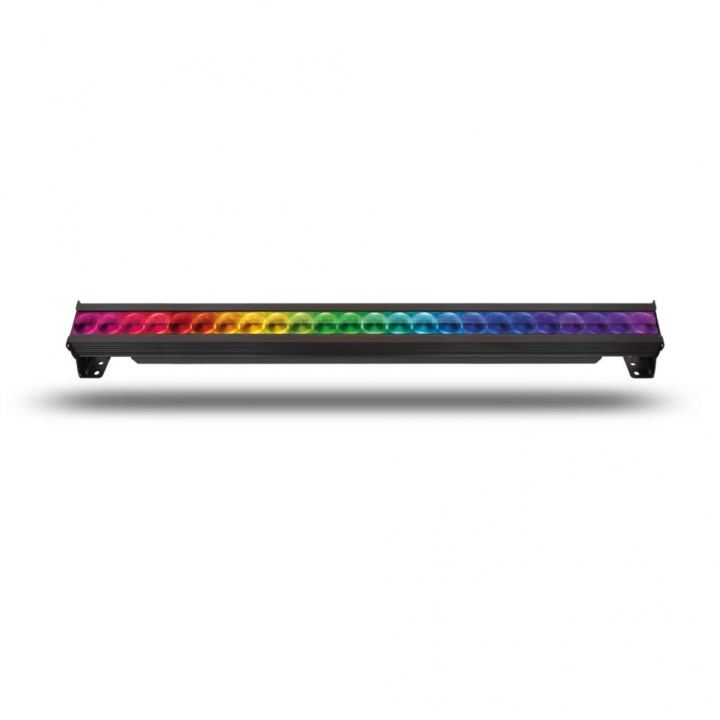

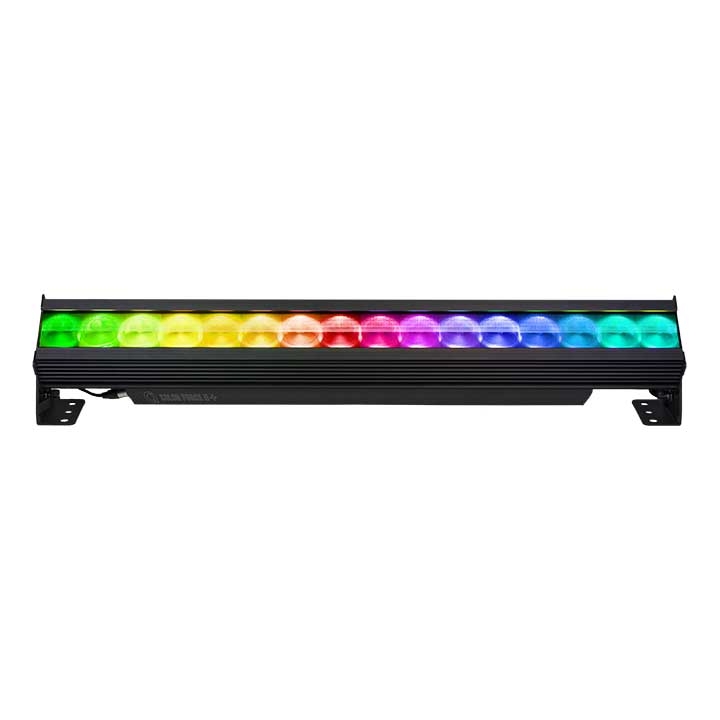

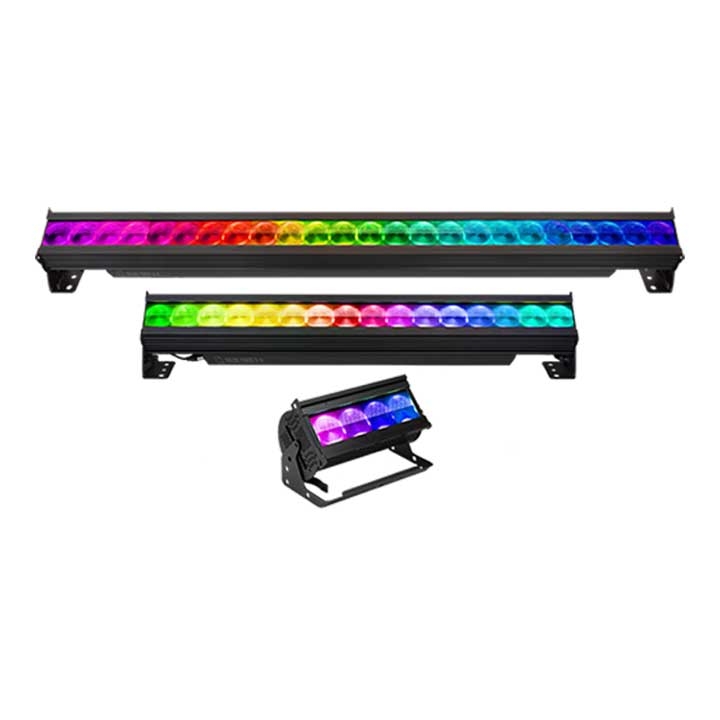

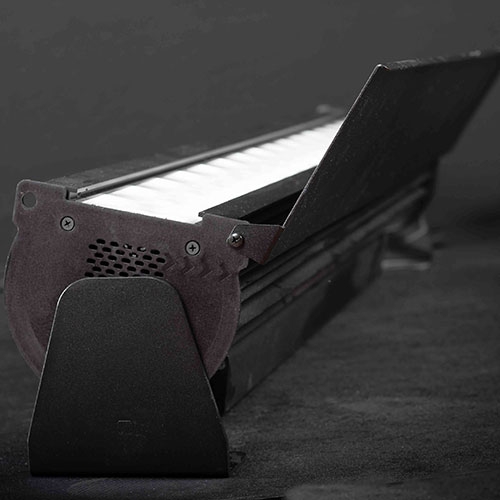

Color Force II AwardsFrom the makers of one of the most popular professional cyc lights, Chroma-Q® does it again: the multi award-winning Color Force II™, a batten that delivers formidable output and superior color blending, all with smooth even coverage.  With four powerful homogenized cells per foot/305mm, these units can be grouped and controlled to release your creativity.  Unsightly color shadowing is eliminated with this innovative optical system that gives power enough to light nearly 12m of cyclorama.  Perfect for a wide range of cyclorama, flood and wall washing applications where a powerful throw is needed. Available in 6 ft / 1.8m, 4 ft / 1.2m, 1 ft / 0.3m versions, these fixtures are specifically designed to fit in flight cases used with the original Color Force.

Patents Pending.

Color Force II 12 Color Force II 48 Color Force II 72
Product code CHCF212RGBA CHCF248RGBA CHCF272RGBA
Dimensions 335mm x 190mm x 218mm / 13.2″ x 7.5″ x 8.6″ 1,181mm x 165mm x 191mm / 46.5″ x 6.5″ x 7.5″ 1,759mm x 165mm x 191mm / 69.25” x 6.5” x 7.5”
Weight 5kg / 11.2lb 18 kg / 39.7 lb 24 kg / 53 lb
Shipping Dimensions 432mm x 343mm x 279mm / 17″ x 13.5″ x 11″  1,295mm x 305 mm x 320mm / 51” x 12” x 12.5” 1,855mm x 305mm x 320mm / 73″ x 12″ x 12.5″
Shipping Weight 7kg / 15.5lb 21 Kg / 46 lb 27 kg / 59 lbs
Power Supply Built-in Built-in Built-in
Power Input Rating 100-240V AC, 50-60 Hz, 160VA 100-240V AC, 50-60 Hz, 400VA 100-240V AC 50-60Hz 800VA
Power Factor 0.96@120V, 0.99@240V
Power Consumption 133W 533W 660W @ 120V AC, 646W @ 240V AC
Idle Power Consumption 29W @ 120V AC, 31W @ 230V AC
Typical Power & Current Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for deviation of +/- 10% Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for deviation of +/- 10% Measurements done with all LEDs at max. intensity. Measurements made at nominal voltage. Allow for deviation of +/- 10%
Power Connector In/Out Neutrik powerCON TRUE1 Neutrik powerCON TRUE1 Neutrik powerCON TRUE1
Data Connector In/Out Neutrik XLR 5-pin Neutrik XLR 5-pin Neutrik XLR 5-pin
Control Protocol ANSI E1.11 USITT DMX 512-A ANSI E1.11 USITT DMX 512-A ANSI E1.11 USITT DMX 512-A
Cooling System Forced Forced Forced
Operating Temperature 0°C to 40°C 0°C to 40°C 0°C to 40°C
Construction Anodised aluminium extrusion Anodised aluminium extrusion Anodised aluminium extrusion
Color Black Black Black
Built-In Hardware Quick release lever for tilt adjustment Quick release lever for tilt adjustment Quick release lever for tilt adjustment
IP Rating IP20 IP20 IP20
Approvals CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750 CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750 CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007, CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750
Color Force II 12 Color Force II 48 Color Force II 72
LED Engines 4 16 24
Hot Lumen Output (Combined) 3,100 12,400 18,600
Control Modes RGBA, RGB, HSI, Look Sel, Master, x4, x2 , x1 , Odd /Even RGBA, RGB, HSI, Look Sel, Master, x16 , x8 , x4 , x2 , x1, Odd /Even, Skp3 , Skp7 Strobe Options, RGBA, RGB, HSI, x1, x2, x3, x4, x6, x8, x12, x24, Look Select, Master, Odd / Even, Skip2, Skip3, Skip6
Dimming Curve Theatrical Theatrical Theatrical
Variable Effects Engine Strobe, Strobe on Top, Strobe Random Strobe, Strobe on Top, Strobe Random Strobe, Strobe on Top, Strobe Random
Optics Fully homogenised Fully homogenised Fully homogenised
Beam Angle 22° (approx.) 22° (approx.) 22° (approx.)
Beam angle with optional Cyc optic 80° x 35° (approx.) 80° x 35° (approx.) 80° x 35° (approx.)
Beam angle with optional Border optic 43° (approx.) 43° (approx.) 43° (approx.)
Beam Distribution Asymmetrical direct illumination Asymmetrical direct illumination Asymmetrical direct illumination
CCT 1,000-10,000K 1,000-10,000K 1,000-10,000K
Color Gamut Performance enhanced Performance enhanced Performance enhanced
CRI 92 92 92
Lamp Life L70 at 50,000 hours L70 at 50,000 hours L70 at 50,000 hours

Patents pending.
