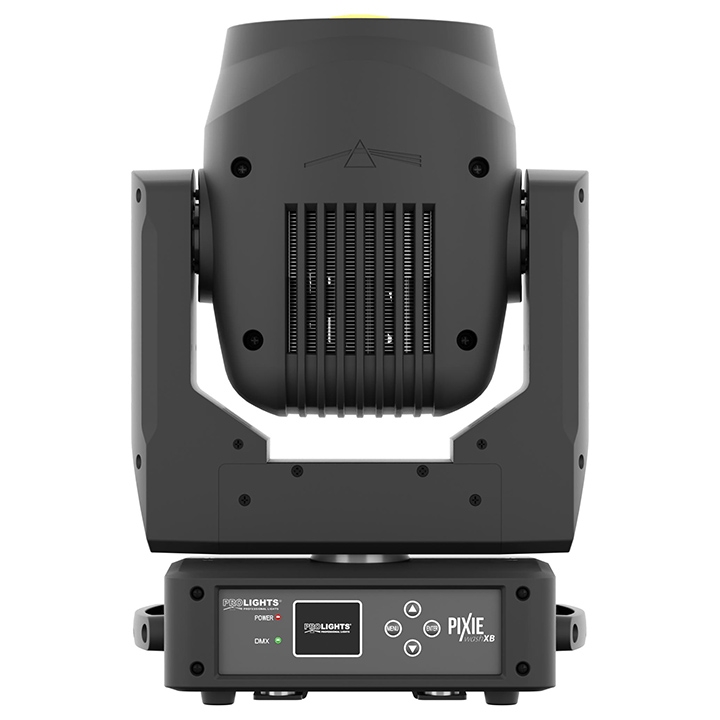

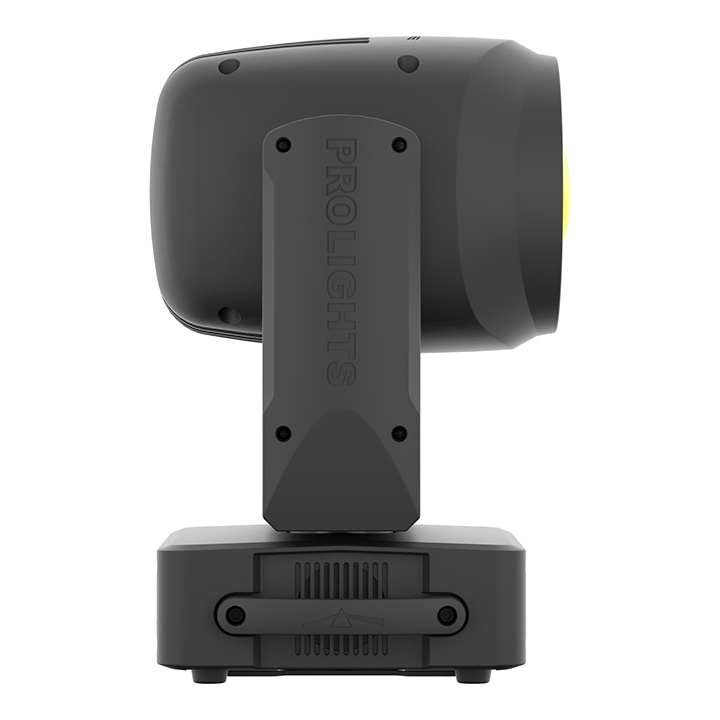

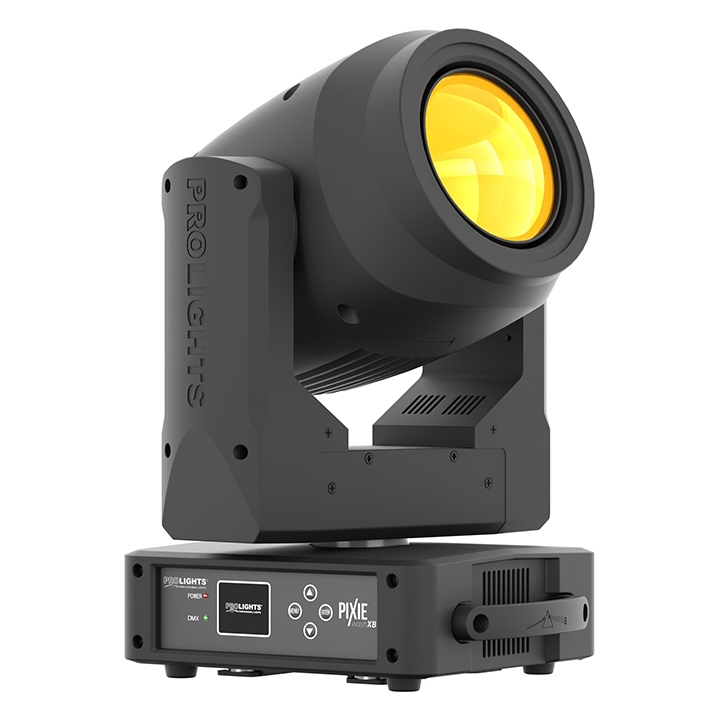

Pixie WashXB

MSRP: $3,739.00 USD
PIPIXIEWASHXB

Pixie WashXB reinvents the concept of the moving LED wash light, bringing together the classic styling of a traditional wash luminaire and applying the very latest innovations in the field of LED technology. The large frontal plano-convex lens delivers a stunning level of brightness and an exceptional zoom range with a 1:8 ratio, combined with a proprietary 280 W RGB and warm white LED module delivering a high-quality white reproduction with high CRI and TLCI parameters as well an extremely precise colour tuning. Pixie WashXB is an ideal solution for any application where users want a superior light quality but without the view of multi-cell fixtures. Being compact, fast and silent, the Pixie WashXB offers unprecedented flexibility and is ideal for use in theatres, TV, corporate and festivals.

Would you like a Demo?

Features:

  • 280 W proprietary RGB and warm white LED delivering high CRI, TLCI, TM30 values
  • 6° to 45° linear zoom with superior evenness
  • Art-net and LumenRadio on-board

LIGHT SOURCE

  • Source: 280W RGB + Warm White LED
  • CCT: 6.500K
  • CRI: > 92
  • R9: > 94
  • Luminous flux: (6°) 3'670 lm - (45°) 3'795lm
  • Lux: (6°) 29'900 lx - (45°) 1'590lx @3 m full
  • Lux: (6°) 10'764 lx - (45°) 572lx @5 m full
  • Source life expectancy: 70.000
  • Other: TM-30-15RF/RG: 90 / 99 - TLCI: > 85

OPTICS

  • Zoom: 6° - 45° motorised linear zoom
  • Field angle: 11° - 48°
  • Lens diameter: 125mm / 4.92''
  • Lens type: high-quality glass lens optics

COLOUR SYSTEM

  • Colour mixing: RGB + Warm White
  • CTC: CTC control through dedicated DMX channel, + / - green and magenta correction and amber shift activation by DMX
  • White presets: 2.800 K - 8.000K
  • Colour wheel: virtual colour wheel with presets
  • Macros: several pre-build macros with adjustable speed

DYNAMIC EFFECTS

  • Special features: linear crossfade from a white to any color and CTO applied on colours

BODY

  • Hardware on-board: OMEGA sockets for quick rigging (clamp included)
  • Pan angle: 540°
  • Tilt angle: 250°
  • Pan/Tilt resolution: 8/16bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium die-casting
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM, Art-Net, W-DMX
  • DMX channels: 13 / 15 / 16 / 18 / 22 / 23 / 27channel
  • W-DMX: included, wireless solution receiver
  • RDM: RDM ready for fixture remote monitor and settings
  • Display: LCD high resolution colour display with autoflip
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: different dimming curves available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Battery backup: battery backup for user operation without connecting to the main power
  • Operating temperature: -10° ~ +45°
  • Flicker: flicker free frequency with adjustable PWM

ELECTRICAL

  • Power consumption: 338 W
  • Power supply: 100-240 V – 50/60 Hz
  • Power consumption (at 230 V): 338W
  • Power consumption (at 120 V): 342W
  • Output (at 230 V): 8 units on a single power line
  • Output (at 120 V): 5 units on a single power line
  • Power factor: pF 0,99 @120 V - pF 0,95 @230 V

PHYSICAL

  • Cooling: combination of heat pipe cooling system and low noise fan
  • Sospension and fixing: any position with quick-lock omega brackets

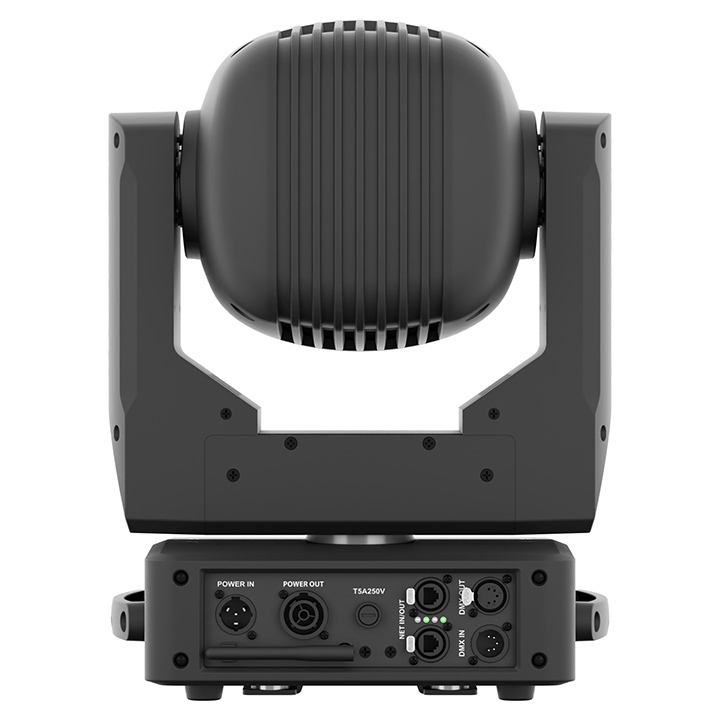

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: Art-Net RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • IP rating: 20
  • Dimensions (WxHxD): 308x448x230mm / 12.13''x17.64''x9.06''
  • Weight: 13,6kg / 29.98lbs

*Note: PROLIGHTS reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details. www.prolightsamerica.com.
