LumiNode

LumiNode, Built for Today, Designed for Tomorrow

LumiNode by Luminex

With LumiNode you have up to 16 processing engines and up to 12 DMX ports.

THIS MEANS:

  • More processing capacity = more flexibility for your shows.
  • Possibility to merge up to 4 input sources.
  • Easy to adapt to future protocols.

#WhereTraditionMeetsInnovation

Download Brochure


LUMINODE 1

LumiNode 1 (Front)

  • USB port that works as an ethernet dongle = unique
  • 2 processing engines & 1 DMX port
  • A “must have” product for every technician. Ideal in combination with any network-based lighting control software
    or with a Luminex RDM device and LumiNet Monitor. No drivers needed, just connect for usage

TECHNICAL DETAILS:

  • Small form factor for personal use and easy to carry
  • USB to Ethernet dongle
  • 1 x USB B-connector USB 2.0
  • 1 x DMX/RDM 5-pin connector, fully isolated
  • 1 x EtherCon network port @ 1Gbps
  • PoE powered (IEEE 802.3af)
  • 1 x status LED indication
  • 1 x DMX/RDM LED indication
  • Robust steel enclosure with protection ears
  • Hole for Kensington lock

Tech Sheet
Tender Document


LUMINODE 2

LumiNode 2 (Front)

  • Ideal to use on any fly-bar in a fixed infrastructure or to be wall mounted
  • 4 processing engines and 2 DMX ports

TECHNICAL DETAILS:

  • Wall mountable
  • Easy mounting for any fly-bar applications
  • 2 x DMX/RDM 5-pin connector, fully isolated
  • 1 x RGB LED per DMX/RDM port for activity indication
  • 2 x EtherCon network port @ 1Gbps with integrated switch
  • Link/Speed LED indication per Ethernet port
  • RGB Mode LED indication per Ethernet port
  • Contact closure as trigger
  • PoE powered (IEEE 802.3af)
  • Robust steel enclosure

Tech Sheet
Tender Document

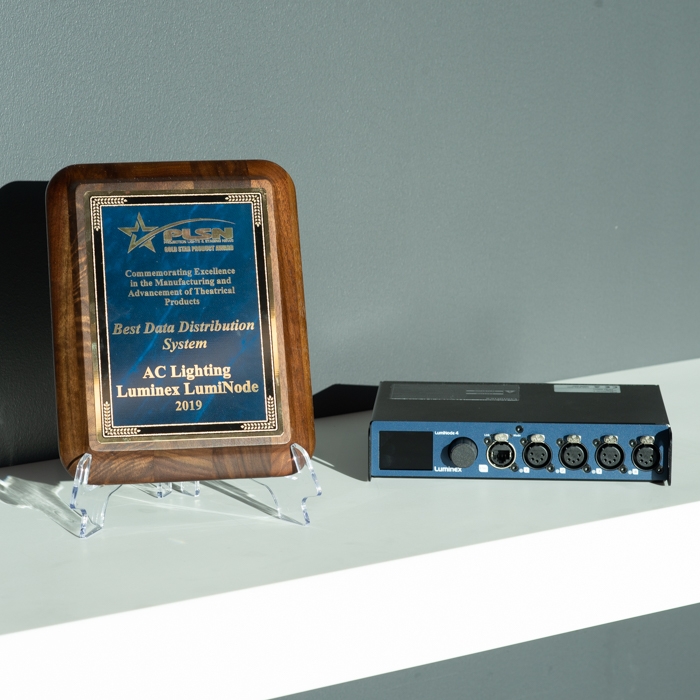

LUMINODE 4

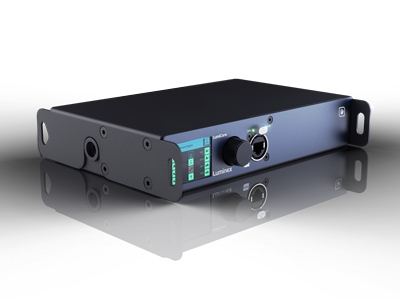

LumiNode 4 (Front)

  • LumiNode 4 is a versatile 4 port node. You can mount one or two units in a 1U rack space
  • The unit is robust and thus ideal for touring applications
  • 6 processing engines and 4 DMX ports
  • The M10 insert and safety ear make it easy to mount it safely on a truss

TECHNICAL DETAILS:

  • Rack or truss mountable half 19” unit
  • 4 x DMX/RDM 5-pin connector, fully isolated
  • 1 x RGB LED per DMX/RDM port for activity indication
  • 2 x EtherCon network port @ 1Gbps with integrated switch
  • Link/Speed LED indication per Ethernet port
  • RGB Mode LED indication per Ethernet port
  • Color display and control jog for fast configuration
  • Contact closure as trigger
  • PoE powered (IEEE 802.3af)
  • Internal universal power supply with Neutrik PowerCon True1
  • Robust steel enclosure with M10 insert and protection ears

Tech Sheet
Tender Document


LUMINODE 12

LumiNode 12 (Front)

  • LumiNode 12 is the ideal full 19” rack unit that offers you the highest density of DMX/RDM ports on the market
  • 16 processing engines and 12 DMX ports

TECHNICAL DETAILS:

  • Full 19” high density rack unit
  • 12 x DMX/RDM 5-pin connector, fully isolated
  • 1 x RGB LED per DMX/RDM port for activity indication
  • 2 x EtherCon network port @ 1Gbps with integrated switch
  • Link/Speed LED indication per Ethernet port
  • RGB Mode LED indication per Ethernet port
  • Color display and control jog for fast configuration
  • Contact closure as trigger
  • PoE powered (IEEE 802.3af)
  • Internal universal power supply with Neutrik PowerCon True1
  • Robust steel enclosure with 2 rack ears

Tech Sheet
Tender Document
