EclPanel TWC

MSRP: $4,495.00 USD
EclProfileTWC

740W Tunable White and colourful LED soft light with pixels and lighting effects (driven @ 430W)

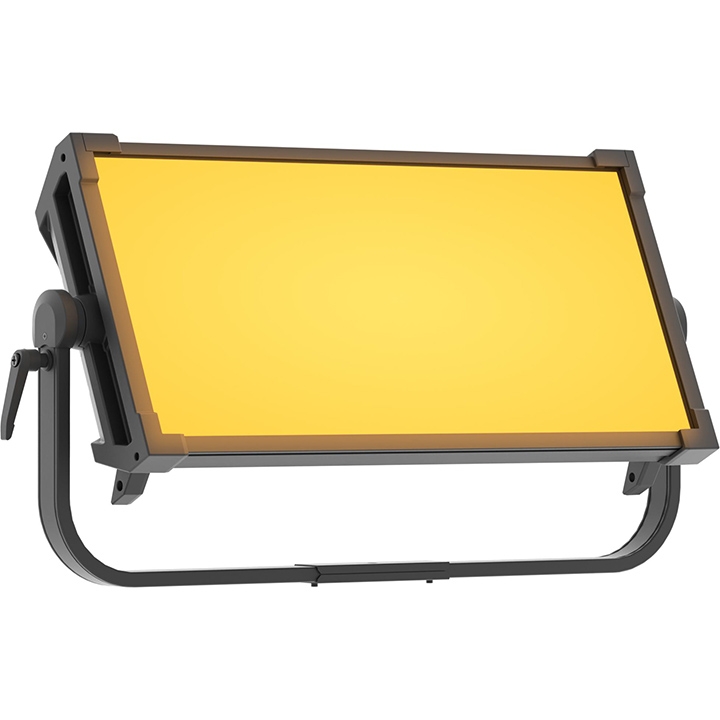

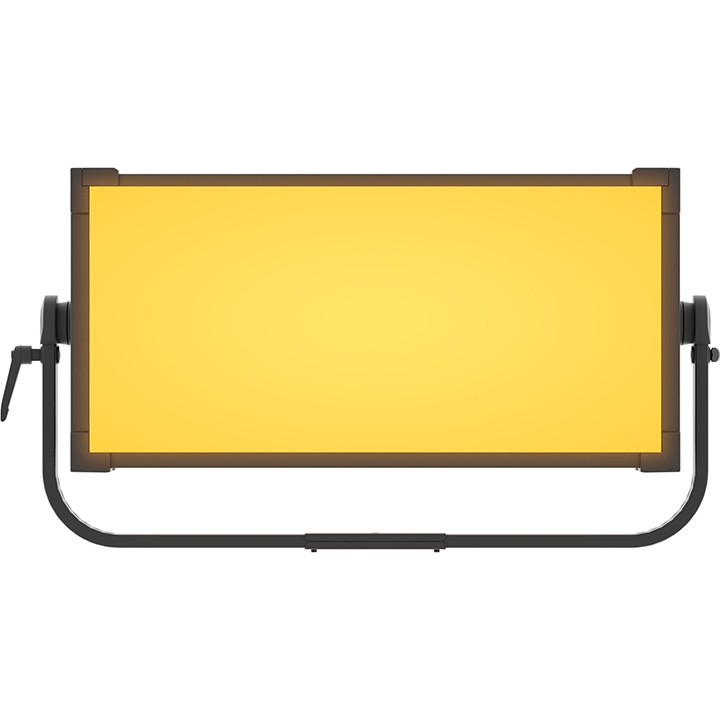

EclPanel TWC is the compact 2x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWC comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI, and TM-30. The EclPanel TWC allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully-featured modes: CCT with +/- green shift, HSI for total control of hue, saturation, and intensity, FX mode to access the onboard pixel cinema effects. The unit can also be controlled on a per section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk. Both methods provide eye candy, with appealing and modern front looks and cinematic special effects. The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWC offers easy rigging and cabling making it the perfect lighting tool for every location.

Would you like a Demo?

Main features:

  • 740W RGB + Warm White Led source (driven @430W)
  • CRI > 95,5; R9 > 92; TLCI > 92
  • 8 section pixel control and built-in lighting effects for Cinema applications
  • Silent operation with multiple fan modes
  • Battery connection (4pXLR 24-36V): compatible with industry-standard external batteries (optional)

Spektra

LIGHT SOURCE

  • Source: 740W RGB + Warm White LEDs (driven @ 430W)
  • Luminous flux: 34'236lm @4.000 K with MD filter
  • Lux: @4000K, 517lx @5 m
  • CRI: 94,6 @3.200 K; 95,5 @5.600 K
  • R9: 97 @3.200 K; 92 @5.600 K
  • TLCI: 92 @5.600 K
  • TM30 Rf: 92 @3.200 K; 89,5 @5.600 K
  • TM30 Rg: 103 @3.200 K; 102,4 @5.600 K
  • Source life expectancy: > 50.000 h

OPTICS

  • Beam angle: 102°
  • Field angle: 159°
  • Lens type: Medium Density diffusion panel (interchangeable)
  • Additional optics: see available accessories

COLOUR SYSTEM

  • Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Color Macros, CTO on colors
  • Colour mixing: RGB + Warm White
  • CCT: CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
  • White presets: 2.800K - 10.000K with 28 K resolution
  • Colour wheel: virtual colour wheel with macros
  • Macros: Gels library on-board

DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer, colours
  • Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
  • Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM, W-DMX, rotatory knob
  • Stand Alone: selectable mode through 3 rotatory knobs
  • Pixel control: 8 section control
  • Wireless Control: included, Wireless Solution transceiver
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker-free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 36.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 24-36V
  • Max power consumption: 460W
  • Power factor: >0,94

PHYSICAL

  • IP rating: 20
  • Cooling: active, silent operation

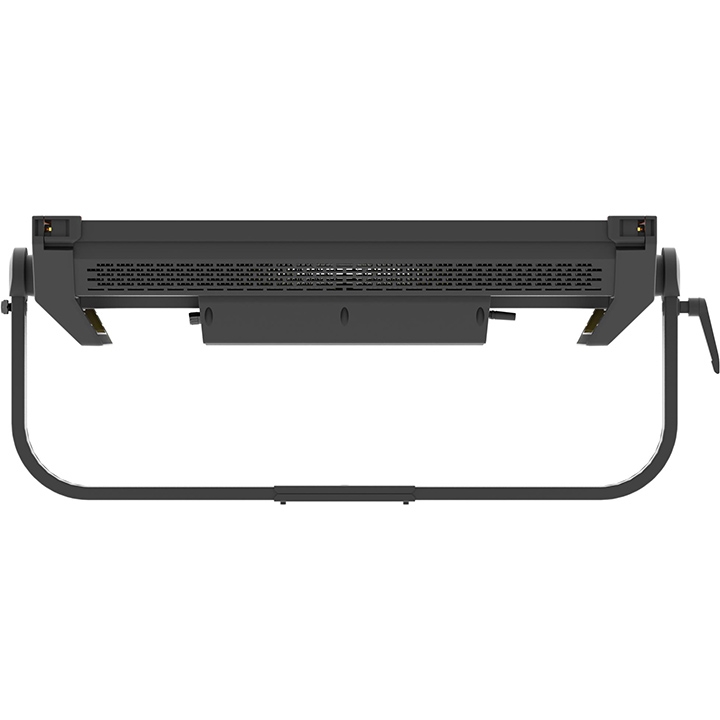

  • Suspension and fixing: bracket for hanging and positioning

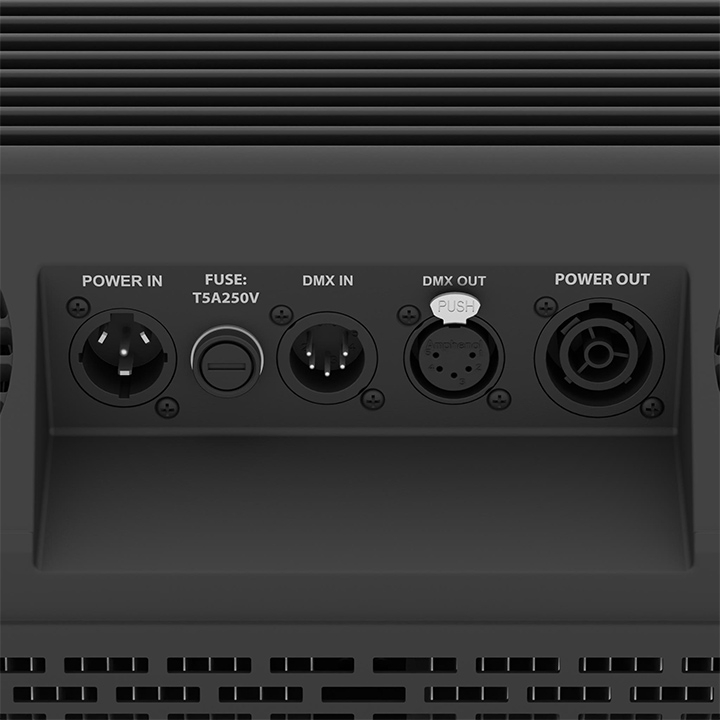

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors

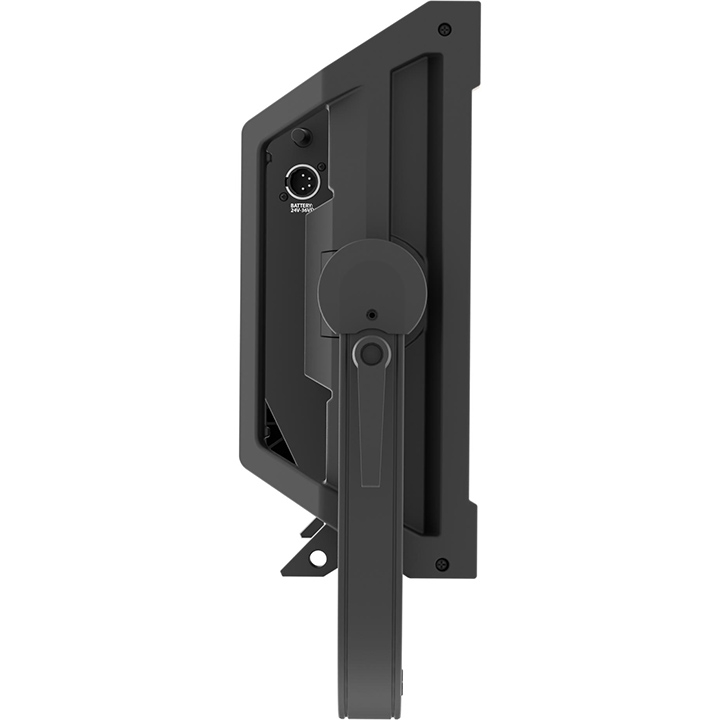

  • Low Voltage DC connector: XLR 4p
  • Dimensions (WxHxD): 819x431x144mm / 32.24''x16.97''x5.67''
  • Dimensions with PO system (WxHxD): 836x431x144mm / 32.91''x16.97''x5.67''
  • Weight: 15.3kg / 33.73lbs
  • Weight with PO system: 17.1kg / 37.7lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

  • 1 x ECLPANELTWC
  • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65)
  • 1 x ECLFRSPG
  • User Manual

To learn more about Photometrics, Software & Certificates, click here.

*Note: PROLIGHTS reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details. https://prolights.it.
