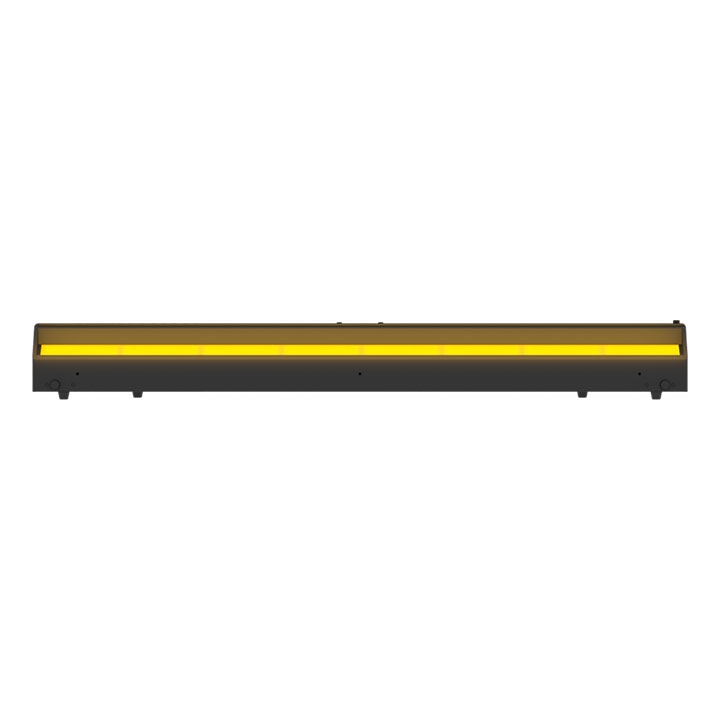

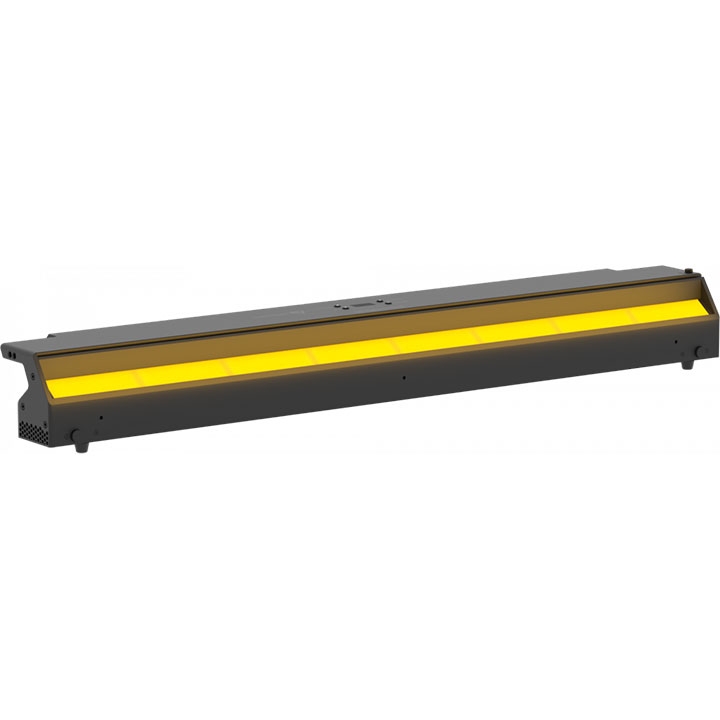

EclCyclorama 100

MSRP: $2,879.00 USD
PIECLCYC100

330W linear soft CYC and flood light with RGB+Warm White color mixing

EclCyclorama 100 is a soft-edge, linear cyclorama, and floodlight, designed in a surprisingly low profile form factor to meet applications at both the front and end of the stage, offering an unprecedented level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high-quality white reproduction of the entire spectrum with high CRI, TLCI, and TM30 performances. The optical system has been designed to offer a very wide asymmetric beam angle, and is capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both applications where the fixture is connected to each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user-friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN, and Wireless DMX.

Would you like a Demo?

Spektra

Main Features:

  • RGB + Warm White color systems allow high-quality of whites (CRI 93 @3.200 K) and bright colors.
  • Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
  • Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
  • Hardware designed with tilt angle adjustment, beam control, and flexible hanging and ground stacking applications.

LIGHT SOURCE

  • Source: 330W RGB + Warm White
  • Luminous flux: (with 40°x80° filter on board) 27'342lm @full
  • Lux: @1 m to wall and 1,5 m height @full (with standard filter 40°x80°) 1'240 lx - (with 40° filter) 2'610 lx - (with 10°x60° filter) 3'110 lx - (with 30°x60° filter) 2'880lx
  • CRI: 93 @3.200 K; 92,6 @5.600 K
  • R9: 88 @3.200 K; 93,7 @5.600 K
  • TLCI: 91 @5.600 K
  • TM30 Rf: 89,8 @5.600 K
  • TM30 Rg: 106 @5.600 K
  • Source life expectancy: > 50.000 h

OPTICS

  • Beam angle: (VxH) 40°x80°
  • Additional optics: see available accessories

COLOUR SYSTEM

  • Colour mixing: RGB + Warm White
  • CCT: CCT control, + / - green correction, tungsten emulation
  • White presets: 2.800 K - 6.500K
  • Colour wheel: virtual colour wheel with macros

DYNAMIC EFFECTS

  • Control Resolution: 16-bit dimmer, colours
  • Special features: linear crossfade channel from any white to any color; virtual CTO on colors

BODY

  • Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
  • Body: sturdy die-cast aluminum body
  • Body color: black
  • Other: +/- 8° angle adjusting

CONTROL

  • Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
  • Wireless Control: included, wireless solution receiver
  • RDM: RDM for remote monitoring and settings

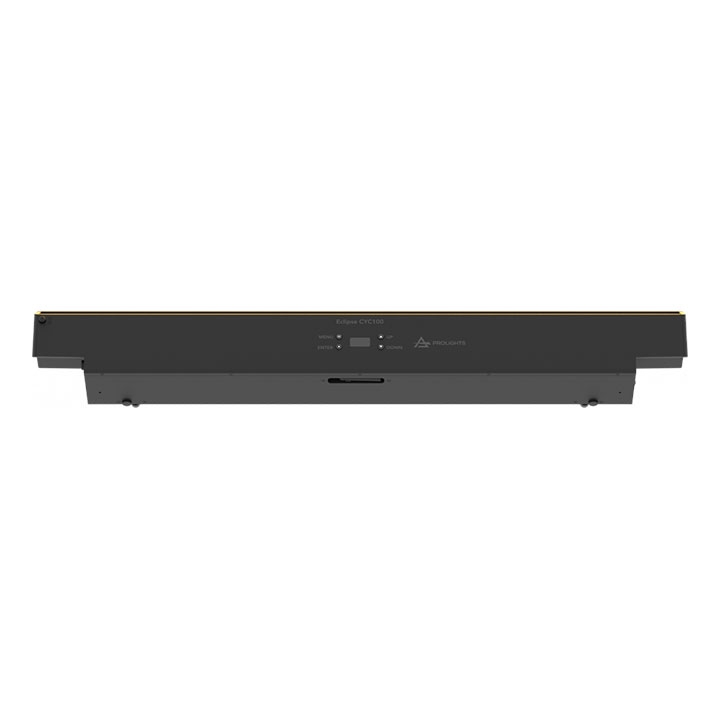

  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

ELECTRONICS

  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker-free frequency with adjustable PWM
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 400W
  • Power factor: >0,94

PHYSICAL

  • IP rating: IP20
  • Cooling: heat sink without fan
  • Suspension and fixing: any position with quick-lock omega brackets

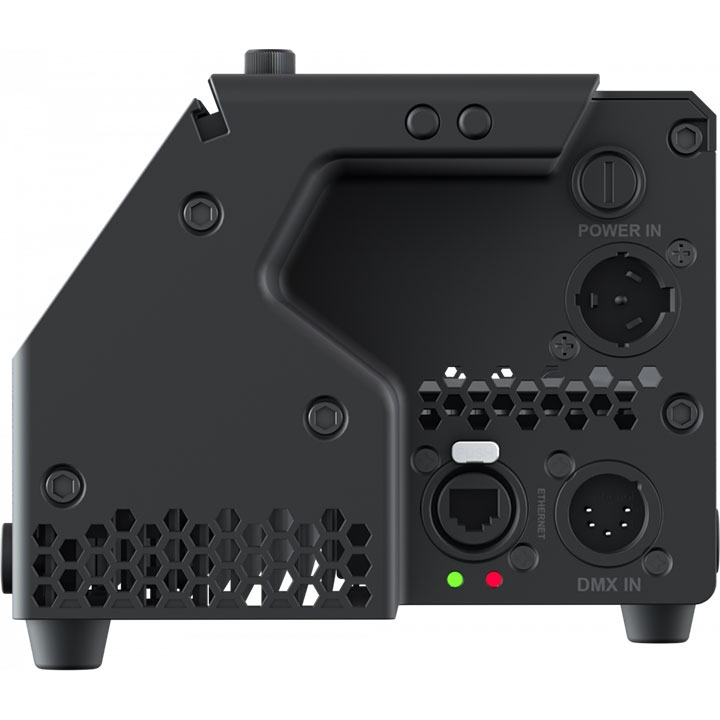

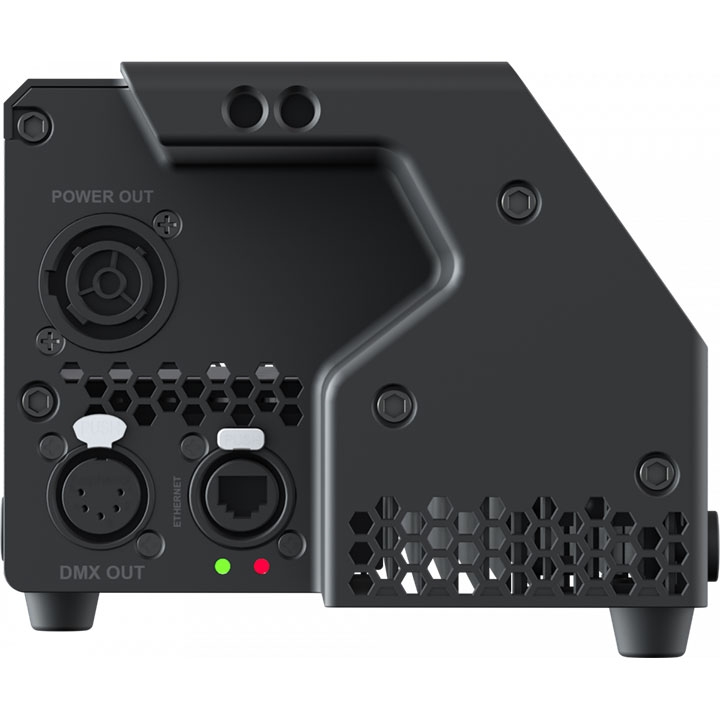

  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Data connection: RJ45 IN/OUT
  • Power connection: Seetronic powerCON waterproof IN/OUT connectors
  • Dimensions (WxHxD): 1000x119x148mm / 39.37''x4.69''x5.83''
  • Weight: 9,6kg / 21.16lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

  • 1 x ECLCYC100
  • 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
  • 2 x OS25
  • User Manual

To learn more about Photometrics, Software & Certificates, click here.

*Note: PROLIGHTS reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details. https://prolights.it.
