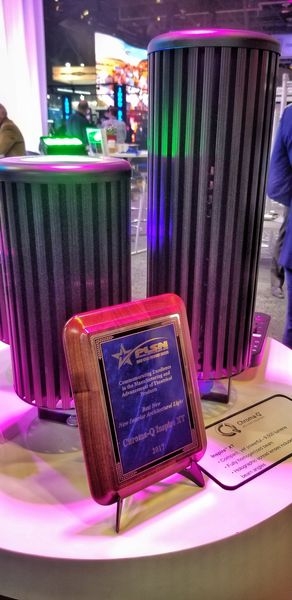

CQ Inspire XT Awards Banner-668×147

Chroma-Q Inspire Range

The new Chroma-Q® Inspire™ LED house light is a powerful multi-purpose creative lighting tool that provides users with the ability to transform the look and feel of their venue by seamlessly transcending the physical barrier between the stage and audience.

Providing a range of beautiful whites, soft pastels and bold saturates, the Inspire’s fully homogenised lens options offer a choice of stunning mixed colors with no unsightly color separation shadows, in an energy-efficient compact LED design providing reduced maintenance and running costs.

Inspire Mini Inspire Inspire XT Inspire MD
Product Code CHINMINIHLRGBWA CHINHLRGBW… (followed by your lens and body colour option) CHINHLRGBWXT / CHINHLRGBWXTW CHINHLMD – Narrow Black Body
CHINHLMDW – Narrow White Body
Net Dimensions (WxHxD) 181mm x 251mm x 181mm / 7″ x 10″ x 7″ 181mm x 404mm x 181mm / 7″ x 16″ x 7″ 181mm x 557mm x 181mm / 7″ x 22″ x 7″ 181mm x 404mm x 181mm / 7″ x 16″ x 7″
Net Weight 3kgs / 6.7lbs 6kgs / 13.5lbs 7.5 kg / 16.5 lbs 6 kg / 13.5 lbs
Shipping Dimensions (WxHxD) 310mm x 390mm x 310mm / 12.25″ x 15.5″ x 12.25″ 305mm x 661mm x 305mm / 12″ x 26″ x 12″ 501mm x 380mm x 300mm / 20″ x 15″ x 12″ 501mm x 380mm x 300mm / 20″ x 15″ x 12″
Shipping Weight 4.5 kgs / 10 lbs 8 kgs / 18 lbs 9.5 kgs / 21 lbs 8 kgs / 18 lbs
Power Supply Built-in Built-in Built-in Built-in
Power Input Rating 100-240V AC 50-60Hz 120VA 100-240V AC 50-60Hz 120VA 100-240V AC 50-60Hz 120VA
Power Factor 0.9 0.9 0.9 0.9
Power Consumption 75W (Maximum Intensity); 2W (Stand-by) 120W @ 230V (Maximum Intensity); 7W @ 230V (Stand-by) 135W @ 230V (Maximum Intensity); 7.5W @ 230V (Stand-by) 105W @ 230V (Maximum Intensity); 0W @ 120V (Stand-by)
Typical Power & Current Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connectors In/Out PowerCon (Input only) PowerCon (Input only) Terminal Block: plug-in screw connector (Input only) Plug-in screw terminal (Input only)
Data Connector In/Out XLR 5-pin XLR 5-pin Terminal Block: plug-in screw connector
Operating Temperature 0°C to 40°C 0°C to 40°C 0°C to 40°C 0°C to 40°C
Control Protocol ANSI E1.11 USITT DMX-512A ANSI E1.11 USITT DMX-512A ANSI E1.11 USITT DMX 512-A ANSI E1.11 USITT DMX 512-A
Cooling System Convection Convection Convection Convection
Construction Anodized aluminium extrusion Anodized aluminium extrusion Anodized aluminium extrusion Anodized aluminium extrusion
Color Black / White Black / White Black / White Black / White
Built-In Hardware Mounting bracket (12.7mm / 1/2″ diameter hole) Mounting bracket (12.7mm / 1/2″ diameter hole) Mounting bracket (12.7mm / 1/2″ diameter hole) Mounting bracket (12.7mm / 1/2″ diameter hole)
IP Rating IP20 IP20 IP20 IP20
Approvals EN55022 & EN55024:2010, ICES-003:2012, FCC Part 15 Subpart B:2012, CSA C22.2 No. 160-M1983 (R2013), UL 1573:2003 (R2014), IEC 60598-2-17 CISPR 22/EN55022 & CISPR 24/EN55024, ICES-003 Issue 4:2004 / FCC Part 15 Subpart B:2010, CSA C22.2 No. 166-M1983: R2008, UL 1573:2003 (R2010), UL SUBJECT 8750: 2009 CISPR 22/EN55022 & CISPR 24/EN55024, ICES-003 Issue 4:2004 / FCC Part 15 Subpart B:2010, CSA C22.2 No. 166-M1983: R2008, UL 1573:2003 (R2010), IEC 60598-2-17 CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/
EN55024 :1998, ICES-003 :2004 & FCC Part 15
Subpart B: 2007, CSA C22. No. 166-M1983:R2008
UL 1573:2003; UL 8750, ICES-003:2016 and FCC
Part 15 Subpart B:2016
Inspire Mini Inspire Inspire XT Inspire MD
LED Engines 1 1 1 1
LEDs Per Engine 12 x Neutral White + 6 x RGB 18 x Neutral White + 6 x RGB 18 x Neutral White + 6 x RGB
Total LEDs 30 36 36
Control Modes 7 channels fxHSI,
5 channels sRGBW,
3 channels HSI,
4 channels RGBW,
1 channel Look sel,
Mastr StndAlon,
Slave StndAlon
7 channels fxHSI,
5 channels sRGBW,
3 channels HSI,
4 channels RGBW,
1 channel Look sel,
Mastr StndAlon,
Slave StndAlon
RGBW Single (up to 4 ch x fixture count in system)
RGBW Output (4 ch per output – 4, 8 or 12 ch)
Tungsten (1 ch per data output)
0-10V
Look Recall
Alarm
Emergency
Using external resistive dimmer
Dimming Curve Theatrical  Theatrical  Theatrical  Theatrical
Variable Effects Engine Yes Yes  Yes
Effects Parameters Color speed
range
step
intensity effects
Color speed
range
step
intensity effects
Color speed
range
step
intensity effects
Hot Lumen Output 3,010 4,390 (narrow lens)
4,120 (medium lens)
4,390 (wide lens)
9,500 6,000 hot lumens (narrow lens)
5,300 hot lumens (medium diffuser filter)
Optics Fully homogenized Fully homogenized Fully homogenized Fully homogenized
Beam Angle 65° approx 32° (narrow lens)
42° (medium lens)
65° (wide lens) approx.
32° (narrow lens)
42° (medium lens)
65° (wide lens) approx.
32°
Beam Distribution Symmetrical direct illumination Symmetrical direct illumination Symmetrical direct illumination Symmetrical direct illumination
CCT Adjustable 1,000 – 10,000K Adjustable 1,000 – 10,000K Adjustable 1,000 – 10,000K 3,000K
Color Gamut Performance enhanced Performance enhanced Performance enhanced
CRI 90 90 90 93
Lamp Life L70 at 50,000 hours L70 at 50,000 hours L70 at 50,000 hours
