Chroma-Q Space Force

The Next Frontier

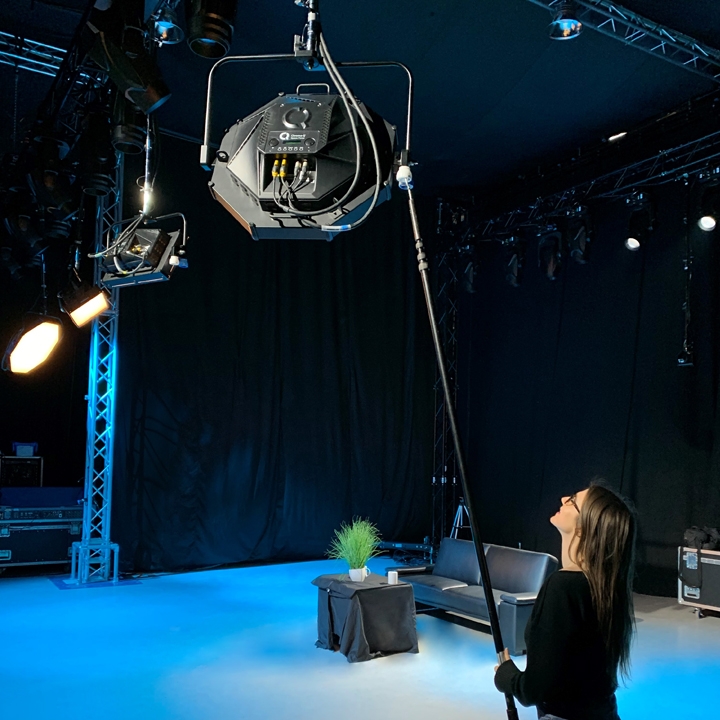

Introducing the new Chroma-Q® Space Force™ LED fixture – the next frontier in space lighting.

TCine Gear Expo Technical Awards 2016 WinnerThe Space Force is a cutting-edge variable white LED Space Light that is a modern replacement for conventional space lights or soft light sources commonly used in film and TV studios around the world.

The Space Force benefits from cool running, energy efficiency, lightweight design and minimum maintenance. CCT tuneable between 2,800K and 6,500K, and natively single source, the diffuse nature of its output negates the need for silks or skirts.

Extensive RDM functionality is provided through wired, or the optional LumenRadio CRMX, connections.

Hanging options include a standard bridle, optional yoke and a low-profile hanging bracket.

Key Features

  • Comparable to a traditional 6kW fixture
  • Up to 26,700 lumens
  • Variable white – 2,800K to 6,500K
  • Only 8kg / 17.6lb
  • No fans, no noise
  • Smooth, soft uniform beam
  • Variable PWM flicker-free operation
  • Multiple hanging options
  • Wireless DMX / RDM
  • Superior unit-to-unit consistency
  • Chroma-Q’s proven LED performance
Product Code CHSPFV – Space Force Variable w Bridle
CHSPFVLR – Space Force Variable w Bridle LumenRadio Installed
Net Dimensions (WxHxD) 655mm x 203mm x 655mm / 25.8″ x 8″ x 25.8″
Net Weight 8kg / 17.6lb
Shipping Dimensions (WxHxD) 737mm x 737mm x 254mm / 29″ x 29″ x 10″
Shipping Weight 11kg / 24lb
Power Supply Built-in
Power Input Rating 100-240V AC 50-60Hz 400VA
Power Factor 0.97
Power Consumption 333W @ 120V AC, 331W @ 230V AC
Inrush Current 56A @ 120V AC, 82A @ 230V AC
Idle Power Consumption 18W @ 120/230V AC
Residual Current (max.) 0.4 mA
Power Connectors In/Out powerCON TRUE1
Data Connector In/Out XLR 5-pin
Operating Temperature 0°C to 40°C
Control Protocol ANSI E1.20 RDM over ANSI E1.11 USITT DMX 512-A
Cooling System Convection
Construction Powder Coated Aluminium
Colour Black
Built-In Hardware Suspension Hanger Brackets
IP Rating IP20
Approvals CISPR 22:2008 / EN55022:2010 (Class A), & CISPR 24:2010 / EN55024:2010, FCC Part 15 Subpart B:2015, ICES-003:2012; UL 1573:2003 / R:2014-01, CSA C22.2 No. 160-M1983 IEC 60598
Control Modes Manual Intensity / Colour Temperature,
2 channel Intensity / Colour Temperature,
Memory 1 / 2,
Dimming Curve Theatrical
Hot Lumen Output Up to 26,700 lm
Optics High Efficiency Diffuser
Beam Angle 60°
Beam Distribution Symmetrical Direct Illumination
CCT 2,800 – 6,500K (+/- 200K)
CRI Up to 97
TLCI Up to 97
Sound Level 24.6 dB
Lamp Life L70 at 50,000 hours
  • CHSPFSY: Manual Yoke
  • CHSPFHB: Low Profile Hanging Bracket
  • CHSPFMS: Black Mini Skirt
  • CHSPFSEC: Soft Egg Crate
  • CHSPFCK: Cyc Skirt / Silk
  • CHSPFSTK: Soft Target Kit – for use with a skirt Full, 1/2, 1/4, 1/8
  • CHSPFSL: Soft Lantern
  • CHSPFB: Bridle – included with fixture
  • CHSPFLR: LumenRadio – user installed
